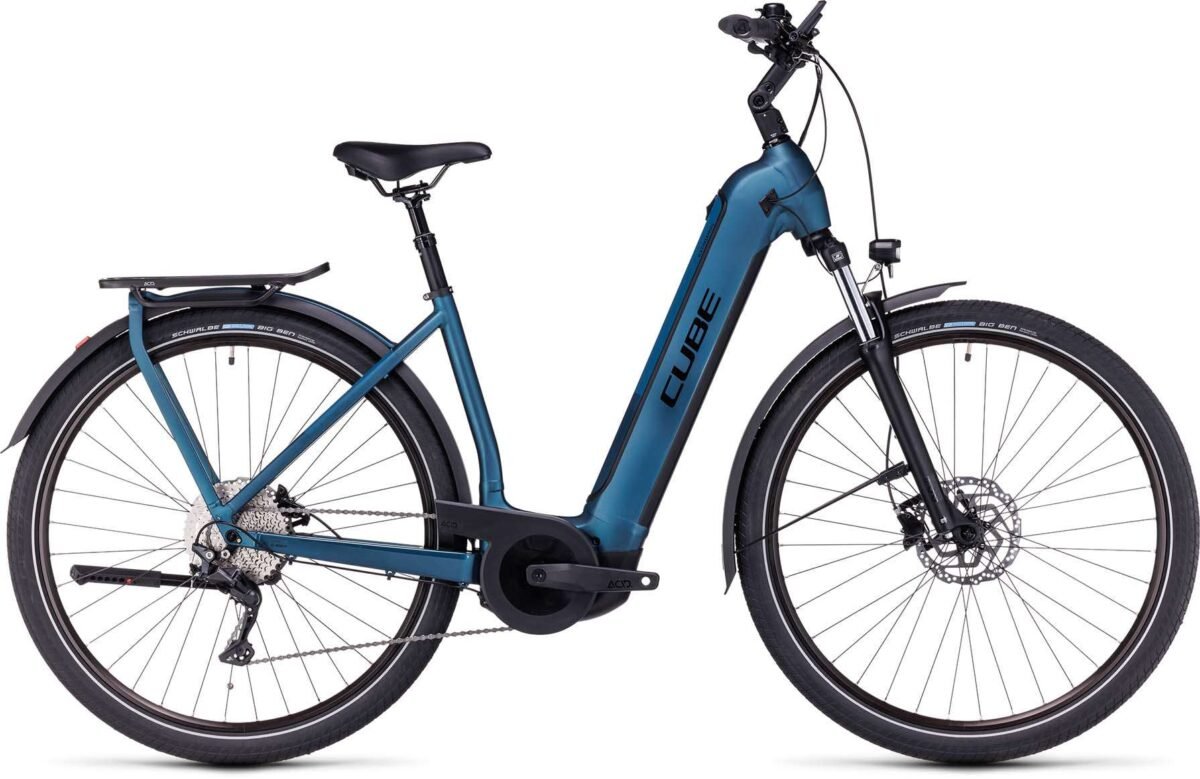

Cube Kathmandu Hybrid ONE 750 blu e nero

TECHNICAL SPECIFICATIONS

Bosch Performance CX E-Bike Motor

Efficient energy use

Optimal motor and transmission performance for tackling long, steep climbs.

Always at maximum power

Ideal for quick intermediate sprints and sudden changes of pace.

Low noise level

For quiet riding with high power at all pedaling frequencies.

Motor torque 85 Nm

For powerful acceleration in a compact format.

Maximum support of 340%

For powerful propulsion, extremely sporty riding and rapid acceleration.

Maximum speed 25 km/h

Constant assistance up to 25 km/h, even on long mountain rides.

FRAME

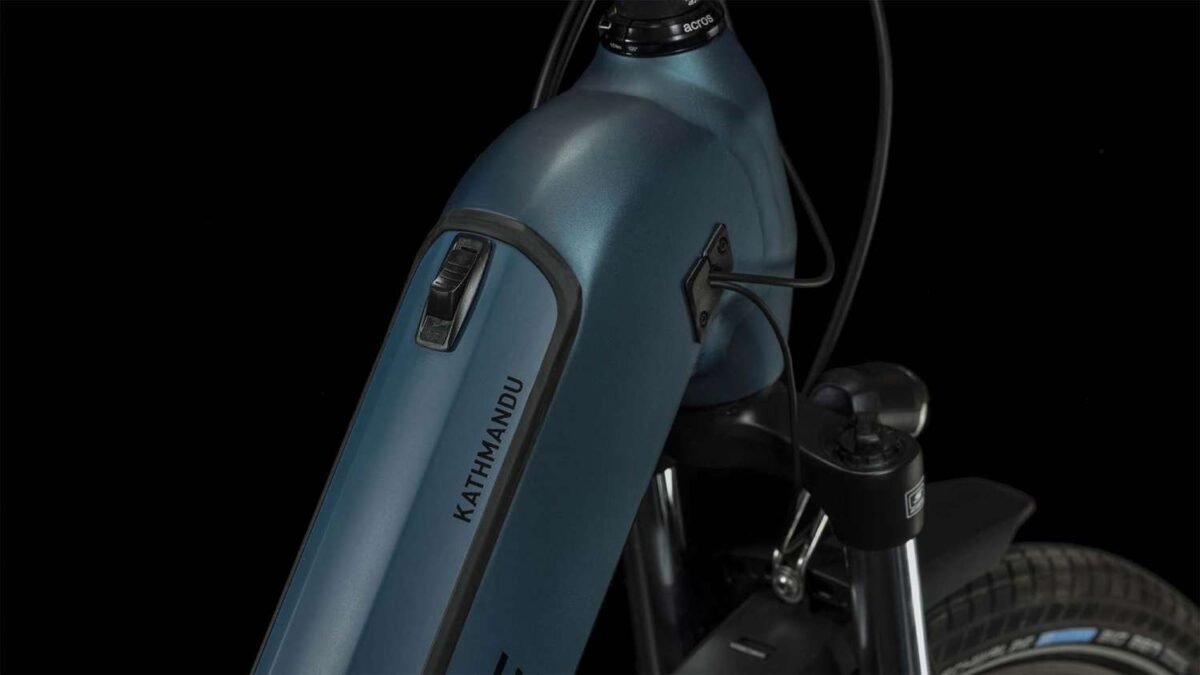

Frame: Superlite aluminum, Gravity Casting Technology, Efficient Comfort Geometry, Boost 148, Integrated Battery, Integrated Rack 3.0, Advanced Internal Cabling, 1.5 Head Tube (EE: Tapered Headtube)

Sizes

• Men: S (50 cm), M (54 cm), L (58 cm), XL (62 cm)
• Trapeze: S (50 cm), M (54 cm)
• Easy Entry: XS (46 cm), S (50 cm), M (54 cm), L (58 cm)

Fork: SR Suntour NVX30 Coil, 100 mm

Headset:

• M/Z: ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, ZS 56 mm above/below
• EE: ACROS AZX-1040, BlockLock 135°, ZS 44 mm above / ZS 56 mm below

COMPONENTS

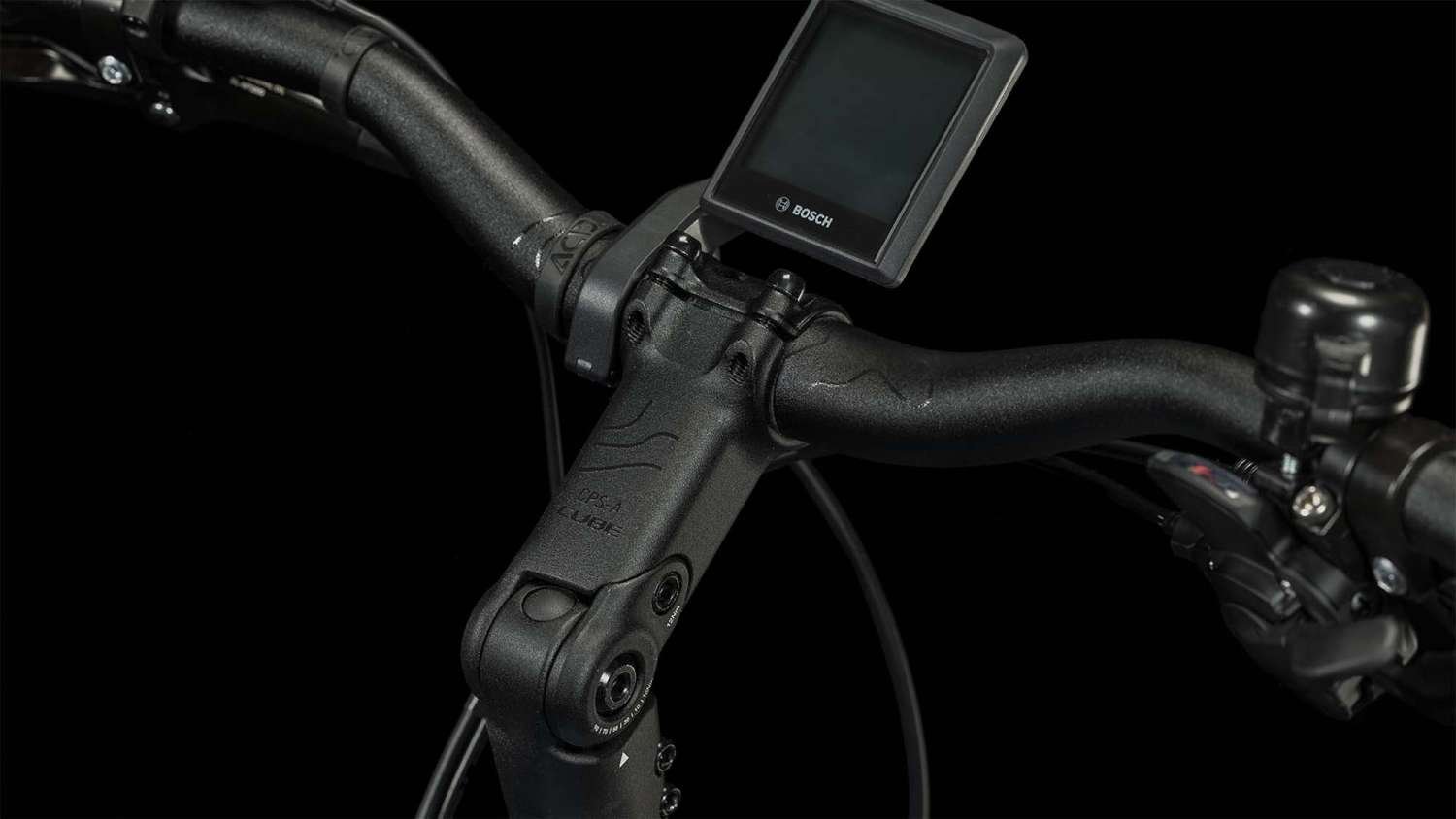

Handlebar stem: CUBE Comfort Stem Pro, 31.8 mm, adjustable

Handlebar: CUBE Comfort Trail Bar, 700 mm

Grips: ACID Travel Comfort

Pedals: ACID PP Trekking

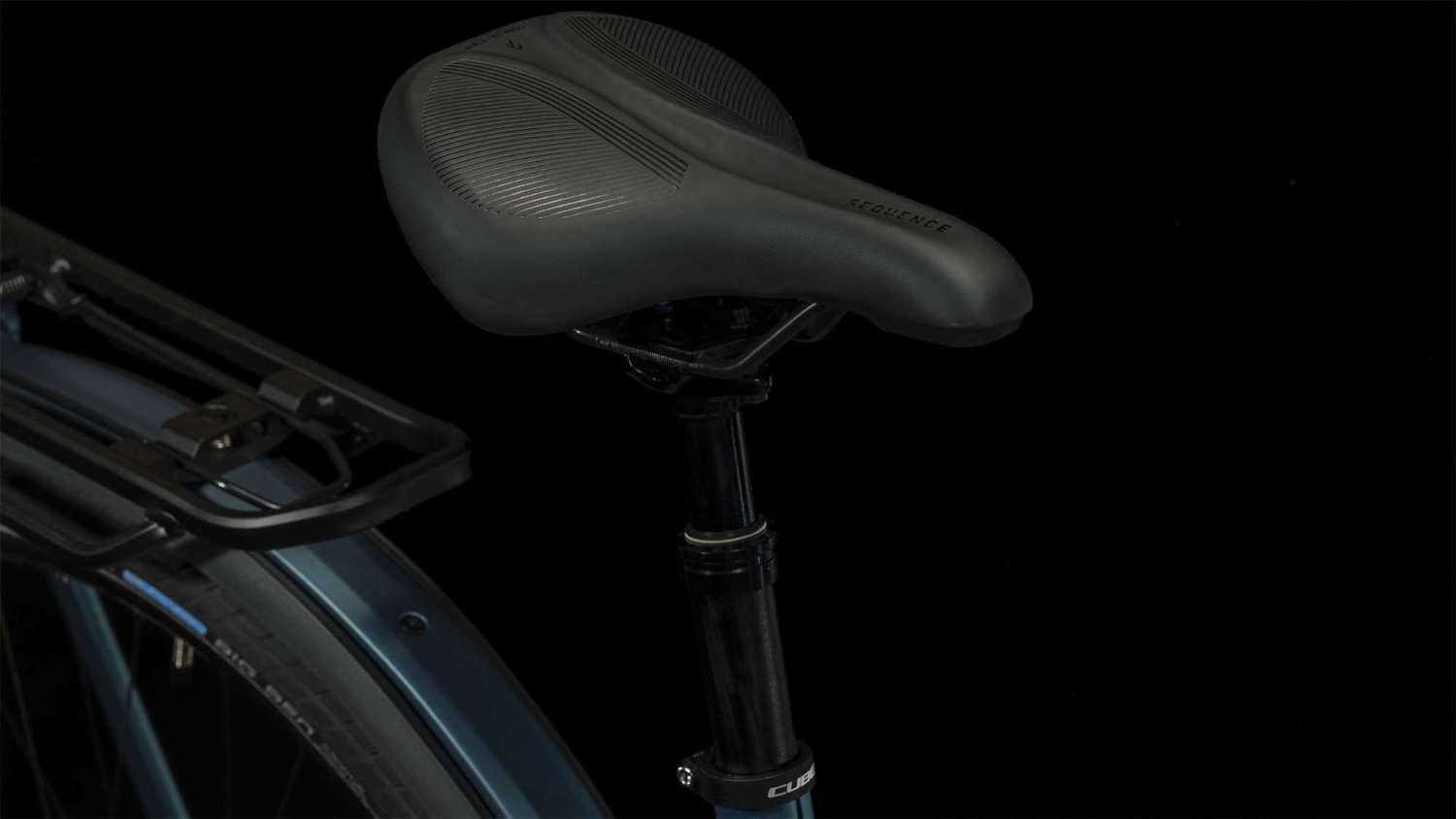

Saddle: Natural Fit Sequence Comfort

Seatpost: CUBE Suspension Seatpost HD, 30.9 mm

Seat clamp: CUBE Screwlock Semi Integrated with hidden tool, 36 mm (EE: standard)

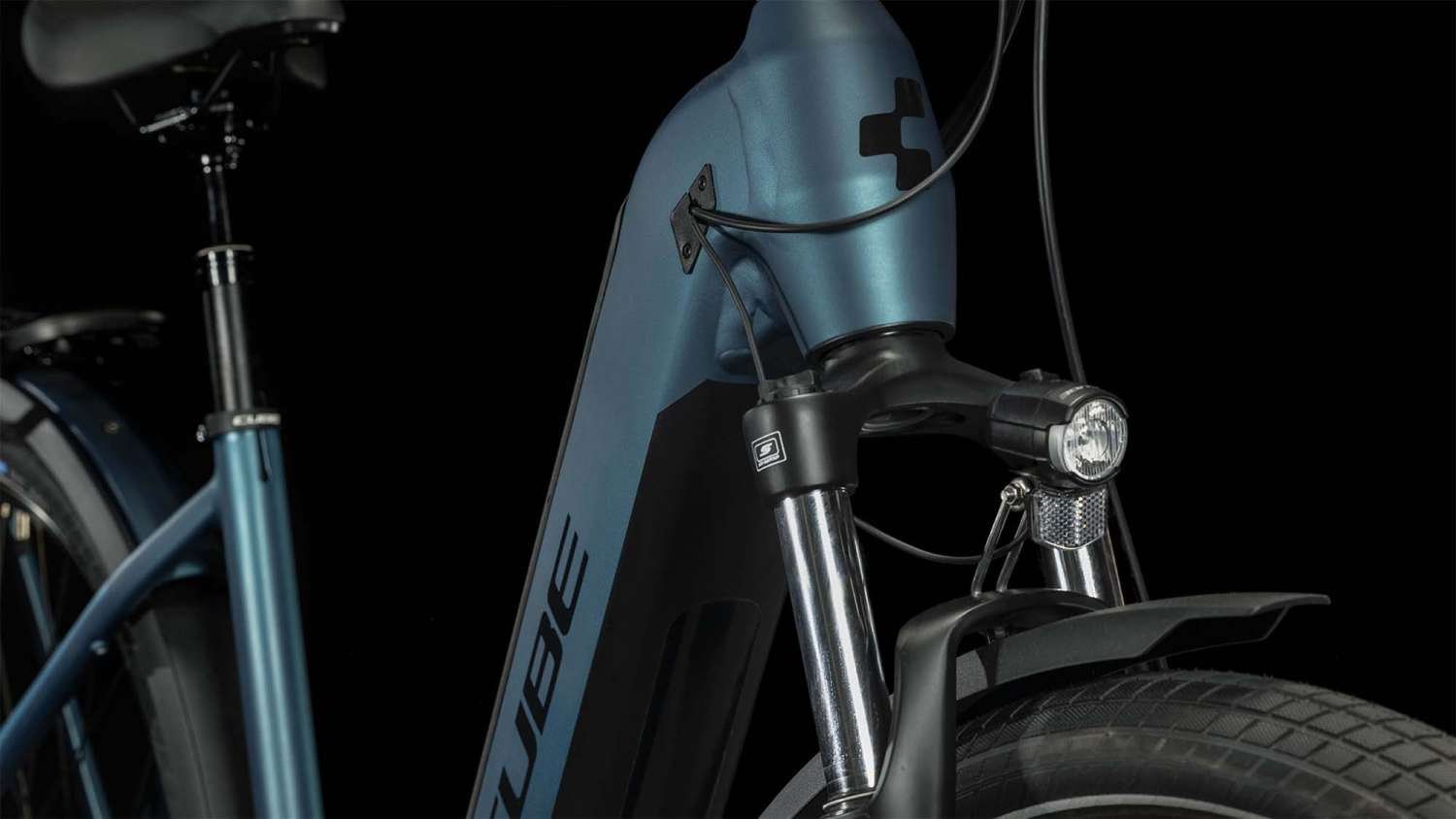

Front light: CUBE Shiny 50 Lux, 12V DC

Rear light: ACID Mudguard Rear Light PRO-E, 12V DC

Kickstand: ACID FM Pure Kickstand

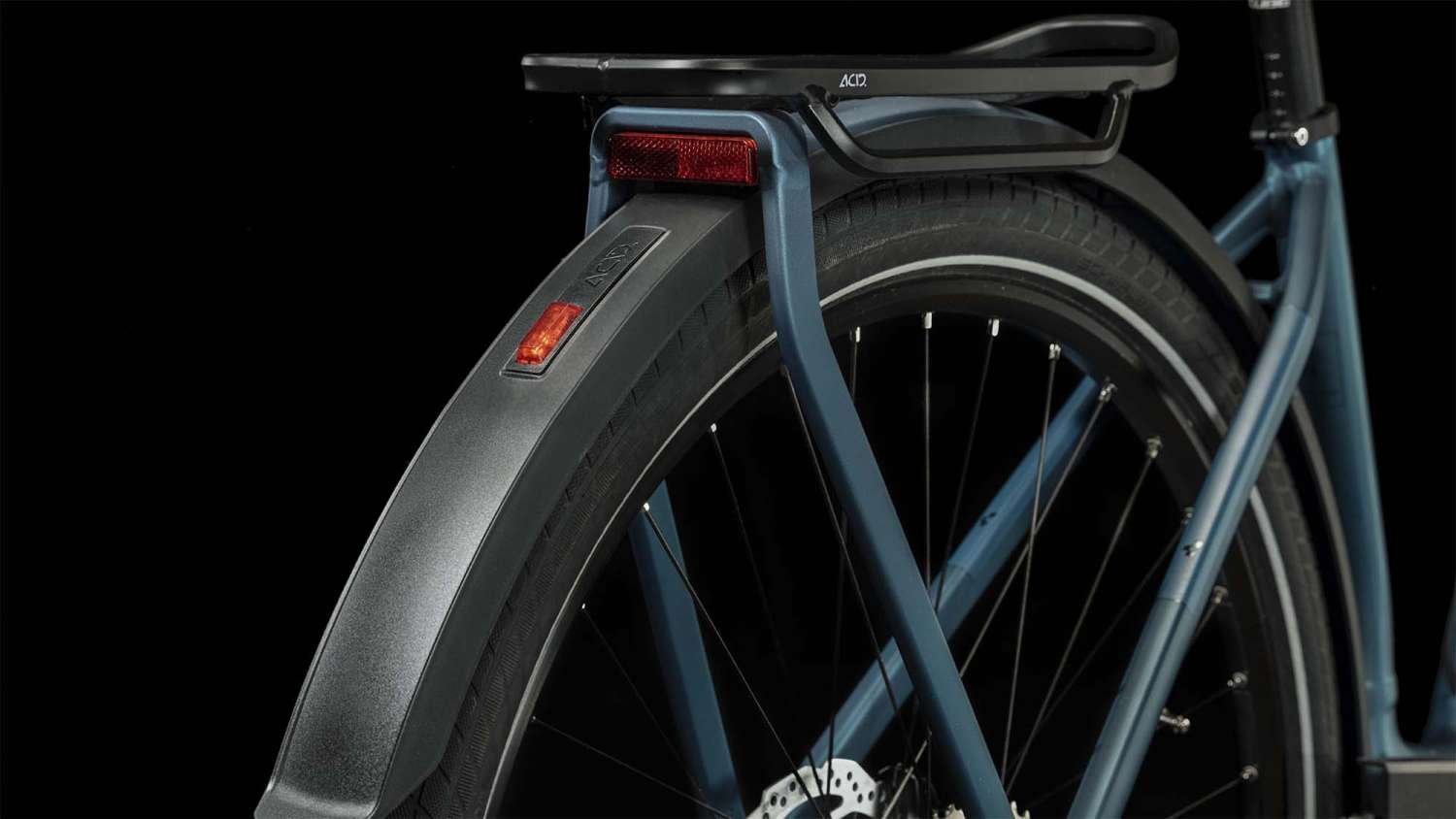

Mudguards: ACID 65 Integrated Carrier 3.0

Bell: Easy Bell

Rack: ACID Integrated Carrier 3.0, compatible with CUBE adapter

DRIVETRAIN

Rear derailleur: Shimano Deore RD-M4120-SGS, 10 speeds

Shift lever: Shimano Deore SL-M4100-R, Rapidfire-Plus

Crankset: ACID E-Crank, 40T, 175 mm (EE: 170 mm)

Cassette: Shimano Deore CS-M4100, 11-42T

Chain: KMC X10

E-BIKE SYSTEM

Motor: Bosch Drive Unit Performance CX Generation 4 (85 Nm) Cruise (250 Watt), Smart System

Battery: Bosch PowerTube 750

Battery charger: Bosch 4A

Control unit: Bosch LED Remote

Display: Bosch Intuvia 100

WHEELS

Rims: Rodi Blackrock 23, 36 holes, Disc, Tubeless Ready

Front hub: Shimano HB-TX505, QR, Centerlock

Rear hub: Shimano FH-MT400-B, 12 mm, Boost, Centerlock

Tires: Schwalbe Big Ben, Performance, K-Guard, 55-622

BRAKES

Brakes: Shimano BR-MT200, hydraulic disc brakes (180/180)

ADDITIONAL

Weight: 27.3 kg

Bike type: E-bike, Trekking

Display: Bosch Intuvia 100

Frame shape: Low (swan neck)

User: Unisex

Frame material: Aluminum

Wheel size: 27.5”, 28”

Motor: Bosch Performance CX

Battery: 750 Wh

Model year: 2023

Size guide:

• 46 cm (XS) / Height: 160 – 170 cm
• 50 cm (S) / Height: 170 – 180 cm
• 54 cm (M) / Height: 180 – 185 cm
• 58 cm (L) / Height: 185 – 190 cm
