TECHNICAL SPECIFICATIONS
Yamaha A Display
For multiple areas of use
The A Display has been designed for a wide range of applications – from city bikes to electric mountain bikes. The simple and intuitive LCD display shows speed and battery status. The focus is on readability, even in difficult weather conditions. The assistance mode can be selected by pressing a single button.
Easy to use
The two large main buttons allow you to quickly change riding modes. In addition, there are three additional buttons to activate push assistance, turn the lights on/off, and turn the screen on/off.
Displayed functions
- Speed
- Battery capacity
- Assist mode
- Daily mileage
- Total mileage
- Estimated range
Riding mode
- EXPW
- High
- STD
- ECO+
- ECO
- OFF
- Walk (push assist)
FRAME KIT
- Frame: Aluminum, M12 (1.00) x 148 mm thru axle, Post Mount disc brake, 140 mm travel
- Fork: RockShox 35 Gold RL, air, 140 mm travel, 1 1/8 – 1 1/2» tapered steerer tube, Boost 15 x 110 mm thru axle
- Rear shock: RockShox Deluxe Select Plus, air
- Headset: Acros BlockLock
COMPONENTS
- Handlebar: Haibike Components TheBar ++ 780 mm
- Grips: Haibike MTB Grips
- Stem: Haibike Components TheStem ++, A-Head, diameter 31.8 mm, 7° angle
- Saddle: Selle Royal Vivo
- Seatpost: Dropper Post with remote control, telescopic, 34.9 mm, aluminum
- Pedals: Freeride aluminum with reflectors
TRANSMISSION
- Rear derailleur: Sram SX Eagle, 12 speeds
- Shifter: Sram SX Eagle, trigger
- Sprocket set: Sram Eagle PG1210, 11-50 teeth
- Chain: Sram SX Eagle
- Chainring: Sram X-Sync 2, 38 teeth
- Chain guide: Nylon, direct mount
ELECTRICAL SYSTEM
- Motor: Yamaha PW-X3, 250 W
- Motor torque: 85 Nm
- Maximum assisted speed: 25 km/h
- Display: Yamaha Side Switch
- Battery: InTube, 630 Wh
- Battery charger: 4A quick charger
WHEELS
- Wheel size: 29″
- Tires: Schwalbe Nobby Nic Evo SuperTrail, 65-622
- Rims: WTB ST i30 TCS, double wall
- Front hub: Haibike Components TheHub ++, 15×110 mm thru axle
- Rear hub: Haibike Components TheHub ++, 12×148 mm thru axle
- Spokes: Sapim Race, black
BRAKES
- Brake levers: TRP Slate T4, aluminum
- Brakes: TRP Slate T4, aluminum, 203 mm
ADDITIONAL
- Maximum supported weight: 150 kg

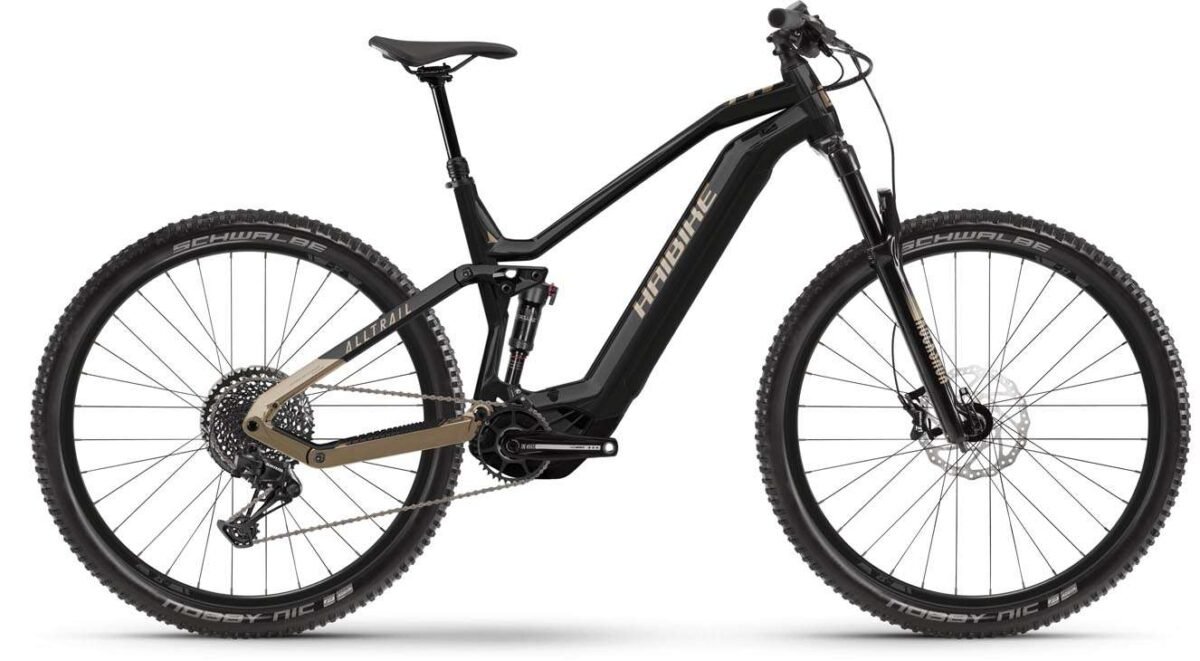

- Type: E-Bike, full suspension MTB
- Display: Yamaha Display A
- User: Unisex
- Frame material: Aluminum
- Wheel size: 29″
- Motor: Yamaha PW-X3
- Battery: 630 Wh
- Model year: 2022
